GigE Vision 3.0 Device IP Core

GigE Vision is a standard communication protocol for vision applications based on the well-known Ethernet technology. It allows easy interfacing between GigE Vision devices and hosts running TCP/IP protocol family. GigE Vision 3.0 addresses requirements for data rates above 10 Gbps by introducing streaming using the Remote DMA protocol RoCEv2, in particular the Reliable Connection SEND transport function.

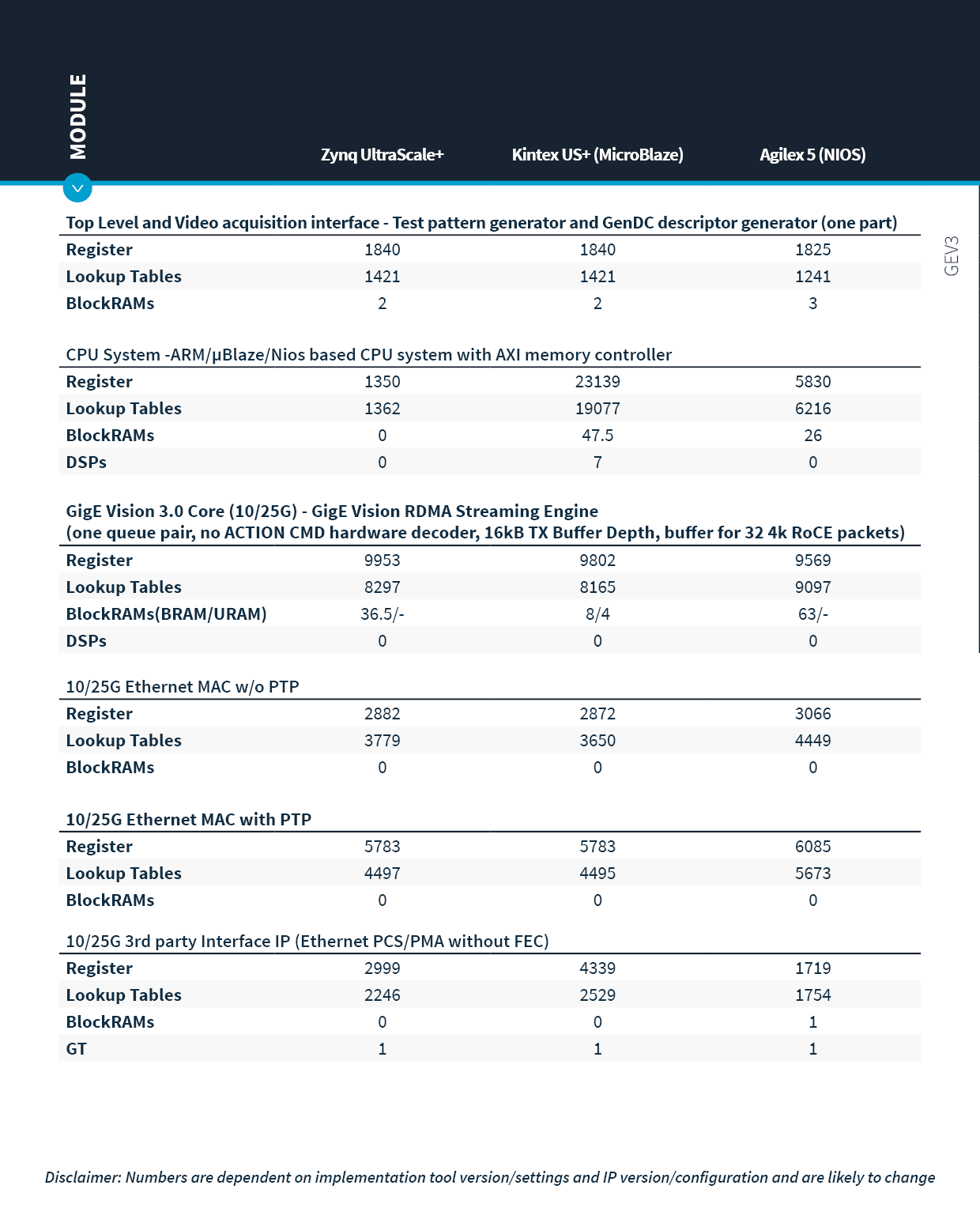

Allied Vision offers a set of IP Cores and a development framework to build FPGA-based transmitter products using the GigE Vision interface. Due to the speed of GigE Vision, senders require a fast FPGA-based implementation of the embedded GigE core. The GigE Vision 3.0 core set provides best performance with AMD UltraScale series devices (and newer) or Altera Agilex devices.
