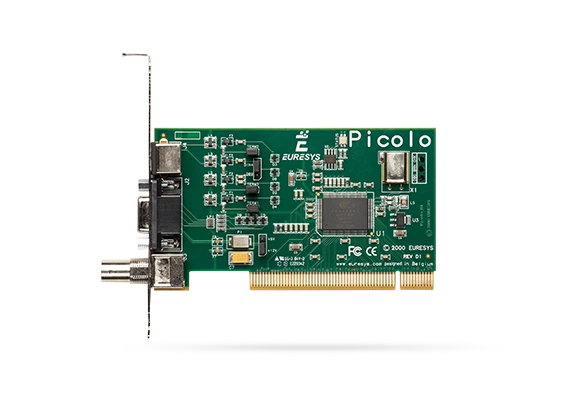

Picolo - Euresys

Video capture cards for standard PAL/NTSC cameras and high-definition 1080P cameras

PCI/PCIe video capture cards compatible with standard cameras

Support of composite and S-Video signals (selected models)

Compare Where to buy

© EURESYS S.A. - Subject to change without notice


8/21/2024 Datasheet Picolo Video capture cards for standard PAL/NTSC cameras and high-definition 1080P cameras PCI/PCIe video capture cards compatible with standard cameras Support of composite and S-Video signals (selected models) Specifications Mechanical Form factor PCI card Format Standard profile, half-length, 32-bit Conventional PCI card Dimensions L 120.90 mm x H 69.83 mm Weight Net weight: 80 g [2.8 oz] Gross weight: 178 g [6.3 oz] Host bus Standard PCI 32-bit, 33 MHz, 5 V signaling DMA 32-bit Power consumption Max. 1 W (200 mA @ +5V), excluding I/O power output Camera / video inputs Termination resistor Selectable using jumpers on the PCB Native resolution Square pixels, broadcast and custom resolutions Frame rate Up to 25/30 images per second, 50/60 fields per second Camera interface standard NTSC, PAL, RS-170, CCIR Number of cameras 3 Interface standard(s) NTSC-M, PAL-B/G, RS-170, CCIR Number of cameras (at full frame rate) 1 Maximum number of cameras 1 Connectors VIDEO 1: BNC female connector on the bracket for composite video input S-VIDEO: 4-pin mini-DIN female connector on the bracket for components video input DB9: 9-pin sub-D female connector on the bracket Internal: 10-pin shrouded male header on the PCB General Purpose Inputs and Outputs Number of lines 4 I/O lines (IO) Connectors DB9: 9-pin female sub-D connector on the bracket INTERNAL: 10-pin dual-row 0.1" shrouded header on the PCB Usage General purpose IO Electrical specifications IO: TTL-compatible I/O lines Software APIs MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers DirectShow 32- and 64-bit filters (Windows only), for Microsoft Visual C++ compilers Host PC Operating System Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures Refer to release notes for details Environmental conditions Operating ambient air temperature 0 °C to +50 °C / +32 °F to +122 °F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20 °C to +70 °C/ -4 °F to +158 °F Storage ambient air humidity 10% to 90% RH non-condensing Certifications KC Certification Korean Radio Waves Act, Article 58-2, Clause 3 Flammability PCB compliant with UL 94 V-0 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Electromagnetic - EMC standards European Council EMC Directive 2004/108/EC United States FCC rule 47 CFR 15 EMC - Emission EN 55022:2010 Class B FCC 47 Part 15 Class B EMC - Immunity EN 55024:2010 Class B EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 Video delivery Raw video format(s) Planar, packed, YUV and RGB color formats Deliverable video resolution (SD) Frame, field, CIF, QCIF and custom image formats Ordering Information Product code - Description 1155 Picolo Related products 1685 Picolo PCIe Offices Europe, Middle East & Africa Euresys SA Contact support : [email protected] Sensor to Image GmbH Contact support : [email protected] China Euresys Shanghai Liaison Office Contact support : [email protected] Euresys Shenzhen Liaison Office Contact support : [email protected] Japan Euresys Japan K.K. Contact support : [email protected] South Korea Euresys South Korea Liaison Office Contact support : [email protected] Asia (other countries) Euresys Pte. Ltd. Contact support : [email protected] North, Central & South America Euresys Inc. Contact support : [email protected]

Picolo
