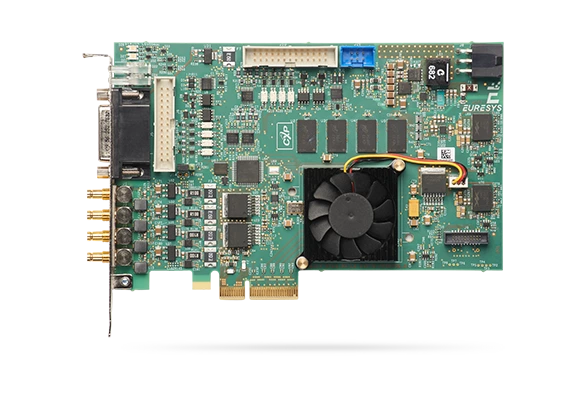

Coaxlink Quad CXP-3CXP-3 CoaXPress-Framegrabber mit 4 Anschlüssen - 4 CoaXPress CXP-3-Anschlüsse: 1.250 MB/s Kamerabandbreite
- Anschluss von 4 Kameras an eine Karte
- Funktioniert mit extra langen Kamerakabeln (100+ Meter)
- PCIe 2.0 (Gen 2) x4 Bus: 1.700 MB/s Übertragungsbandbreite
- Umfangreiche Kamerasteuerungsfunktionen
- Memento Event-Logging-Tool
SpezifikationenMechanical- Form factor
PCI Express card - Format
Standard profile, half length, 4-lane PCI Express card - Cooling method
Air cooling, fan-cooled heatsink - Mounting
For insertion in a standard height, 4-lane or higher, PCI Express card slot - Connectors
'A', 'B', 'C', 'D' on bracket: 4x DIN 1.0/2.3 female connectors CoaXPress host interface 'EXTERNAL I/O' on bracket: 26-pin 3-row high-density female sub-D connector I/O lines and power output 'INTERNAL I/O 1' and 'INTERNAL I/O 2' on PCB: 2x 26-pin 2-row 0.1" pitch pin header with shrouding I/O lines and power output 'AUXILIARY POWER INPUT' on module: 6-pin PEG power socket 12 VDC power input for PoCXP camera(s) and I/O power 'C2C-LINK' on module: 6-pin 2-row 0.1-in header Card to card link - LED indicators
'A', 'B', 'C', 'D' on bracket: Bi-color red/green LEDs CoaXPress Host connector indicator 'FPGA STATUS LAMP' on PCB: Bi-color red/green LED FPGA status indicator 'BOARD STATUS LAMP' on PCB: Bi-color red/green LED Board status indicator - Switches
'RECOVERY' on PCB: 3-pin 1-row 0.1" header or 2-way DIP switch Firmware emergency recovery - Dimensions
PCB L X H: 167.65 mm x 111.15 mm, 6.6 in x 4.38 in
Host bus- Link speed
5.0 GT/s (PCIe 2.0) 2.5 GT/s (PCIe 1.0) with reduced performance - Link width
4 lanes 1 lane or 2 lanes with reduced performance - Maximum payload size
512 bytes - Peak delivery bandwidth
2,000 MB/s - Effective (sustained) delivery bandwidth
1,700 MB/s (Host PC motherboard dependent) - Power consumption
Typ. 12.1W ( 2.5 W @ +3.3V, 9.6 W @ +12V), excluding camera and I/O power output
Camera / video inputs- Camera interface standard
CoaXPress - Status LEDs
One CoaXPress Host connection status LED per connection - Supported CXP down-connection speeds
1.25 GT/s (CXP-1), 2.5 GT/s (CXP-2), 3.125 GT/s (CXP-3) - Number of CXP data streams (per camera)
1 data stream per camera - Maximum CXP stream packet size
8,192 bytes - PoCXP (Power over CoaXPress)
PoCXP Safe Power: 17 W of 24V DC regulated power per CoaXPress connector PoCXP Device detection and automatic power-on Overload and short-circuit protections On-board 12V to 24V DC/DC converter A +12V power source must be connected to the AUXILIARY POWER INPUT connector using a 6-pin PEG cable - Camera types
Grayscale Color (RGB and Bayer CFA) - Number of cameras
Up to four 1-connection cameras - Camera pixel formats supported
Mono8, Mono10, Mono12, Mono14, Mono16 BayerXX8, BayerXX10, BayerXX12, BayerXX14, BayerXX16 where XX = GR, RG, GB, or BG RGB8, RGB10, RGB12, RGB14, RGB16 RGBA8, RGBA10, RGBA12, RGBA14, RGBA16 YCbCr601_422_8, YCbCr601_422_10 YCbCr709_422_8, YCbCr709_422_10 YUV422_8, YUV422_10 Raw - Interface standard(s)
CoaXPress 1.0, 1.1 and 1.1.1 - Maximum number of cameras
2 - Maximum link width
4 connections - Maximum aggregated camera data transfer rate
12.5 Gbit/s (1,250 MB/s) - Connectors
Four DIN1.0/2.3 75 Ohms CXP-3
Area-scan camera control- Trigger
Precise control of asynchronous reset cameras, with exposure control. Support of camera exposure/readout overlap. Support of external hardware trigger, with optional delay and trigger decimation. - Strobe
Accurate control of the strobe position for strobed light sources. Support of early and late strobe pulses.
On-board processing- Data stream statistics
Measurement of: Frame rate (Area-scan only) Line rate Data rate Configurable averaging interval - Event signaling and counting
The application software can be notified of the occurrence of various events: Standard event: the EVENT_NEW_BUFFER event notifies the application of newly filled buffers A large set of custom events Custom events sources: I/O Toolbox events Camera and Illumination control events CoaXPress data stream events CoaXPress host interface events Each custom event is associated with a 32-bit counter that counts the number of occurrences The last three 32-bit context data words of the event context data can be configured with event-specific context data: Event-specific data State of all System I/O lines sampled at the event occurrence time Value of any event counter - Image data stream processing
Unpacking of 10-/12-/14-bit to 16-bit with selectable justification to LSb or MSb Optional swap of R and B components Little endian conversion
General Purpose Inputs and Outputs- Power output
Non-isolated, +12V, 1A, with electronic fuse protection - I/O Toolbox tools
The I/O Toolbox is a configurable interconnection of tools that generates events (usually triggers) from input lines. The composition of the toolset is product- and firmware-dependent. Line Input tool (LIN): Edge detector delivering events on rising or falling edges of any selected input line. Quadrature Decoder tool (QDC): A composite tool including: A quadrature edge detector delivering events on selected transitions of selected pairs of input lines. An optional backward motion compensator for clean line-scan image acquisition when the motion is unstable. A 32-bit up/down counter for delivering a position value. Divider tool (DIV): to generate an event every nth input events from any I/O toolbox event source. Delay tool (DEL): to delay up to 16 events from one or two I/O toolbox event sources, by a programmable time or number of motion encoder ticks (any QDC events). - I/O Toolbox composition
8 LIN, 1 QDC, 1 DIV, 1 DEL - Number of lines
20 I/O lines: 4 differential inputs (DIN) 4 singled-ended TTL inputs/outputs (TTLIO) 8 isolated inputs (IIN) 4 isolated outputs (IOUT) - Usage
Any I/O input lines can be used by any LIN tool of the I/O Toolbox Selected pairs of I/O input lines can be used by any QDC tool of the I/O toolbox to decode A/B signals of a motion encoder - Electrical specifications
DIN: High-speed differential inputs, up to 5 MHz, compatible with ANSI/EIA/TIA-422/485 differential line drivers and complementary TTL drivers TTLIO: High-speed 5V-compliant TTL inputs or LVTTL outputs, compatible with totem-pole LVTTL, TTL, 5V CMOS drivers or LVTTL, TTL, 3V CMOS receivers IIN: Isolated current-sense inputs with wide voltage input range up to 30V, compatible with totem-pole LVTTL, TTL, 5V CMOS drivers, RS-422 differential line drivers, potential free contacts, solid-state relays and opto-couplers IOUT: Isolated contact outputs compatible with 30V / 100mA loads NOTE: IIN and IOUT lines provide a functional isolation grade for the circuit technical protection. It does not provide an isolation that can protect a human being from electrical shock! - Filter control
Glitch removal filter available on all System I/O input lines Configurable filter time constants: for DIN and TTLIO lines: 50 ns, 100 ns, 200 ns, 500 ns, 1 µs for IIN lines: 500 ns, 1 µs, 2 µs, 5 µs, 10 µs
C2C-Link- Description
Accurate synchronization of the trigger and the start-of-exposure of multiple grabber-controlled area-scan cameras. Accurate synchronization of the start-of-cycle, start-of-scan and end-of-scan of multiple grabber-controlled line-scan cameras. - Specification
C2C-Link synchronizes cameras connected to: the same card to different cards in the same PC (requires an accessory cable such as the "3303 C2C-Link Ribbon Cable" or a custom-made C2C-Link cable) to different cards in different PCs (requires one "1636 InterPC C2C-Link Adapter" for each PC and one RJ 45 CAT 5 STP straight LAN cable for each adapter but the last one) Maximum distance: 60 cm inside a PC 1200 m cumulated adapter to adapter cable length Maximum trigger rate: 2.5 MHz for configurations using a single PC, or up to 10 PCs and 100 m total C2C-Link cable length 200 kHz for configurations up to 32 PCs and 1200m total C2C-Link cable length Trigger propagation delay from master to slave devices: Less than 10 ns for cameras on the same card or on different cards in the same PC Less than 265 ns for cameras on different cards in different PCs (3 PCs and 40m total C2C-Link cable length)
Software- Supported Memento event categories
Yes - APIs
EGrabber class, with C++ and .NET APIs: .NET assembly designed to be used with development environments compatible with .NET frameworks version 4.0 or higher GenICam GenTL producer libraries compatible with C/C++ compilers: 'x86_64' dynamic library designed to be used with ISO-compliant C/C++ compilers for the development of x86-64 (64-bit) applications 'aarch64' dynamic library designed to be used with ISO-compliant C/C++ compilers for the development of AArch64 (64-bit) applications - Host PC Operating System
Microsoft Windows 11, 10, 8.1, 7 for x86-64 (64-bit) processor architecture Linux for x86-64 (64-bit) and AArch64 (64-bit) processor architectures macOS for x86-64 (64-bit) and AArch64 (64-bit) processor architectures
Environmental conditions- Operating ambient air temperature
0 °C to +55 °C / +32 °F to +131 °F - Operating ambient air humidity
10% to 90% RH non-condensing - Storage ambient air temperature
-20 °C to +70 °C/ -4 °F to +158 °F - Storage ambient air humidity
10% to 90% RH non-condensing
Certifications- KC Certification
Korean Radio Waves Act, Article 58-2, Clause 3 - Flammability
PCB compliant with UL 94 V-0 - RoHS
European Union Directive 2015/863 (ROHS3) - REACH
European Union Regulation 1907/2006 - WEEE
Must be disposed of separately from normal household waste and must be recycled according to local regulations - Electromagnetic - EMC standards
European Council EMC Directive 2014/30/EU United States FCC rule 47 CFR 15 - EMC - Emission
EN 55032:2015 / CISPR 32:2012 Class B FCC 47 Part 15 Class B - EMC - Immunity
EN 55035:2017 / CISPR 35:2016 EN 61000-6-2:2005 / IEC 61000-6-2:2016 EN 61000-4-2:2009 EN 61000-4-3:2006 EN 61000-4-4:2004 EN 61000-4-6:2014
Ordering Information- Product code - Description
1638 Coaxlink Quad CXP-3 - Related products
1625 DB25F I/O Adapter Cable 1636 InterPC C2C-Link Adapter 3303 C2C-Link Ribbon Cable 3304 HD26F I/O Adapter Cable
|
