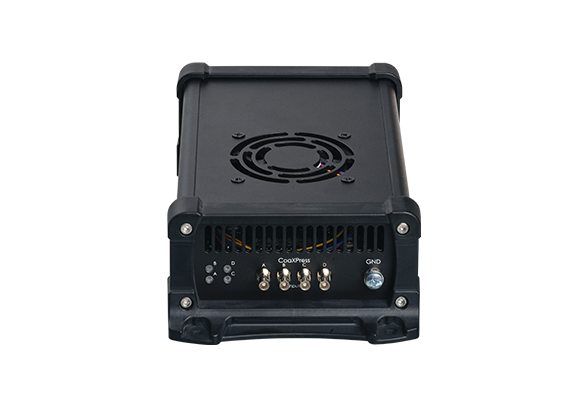

四路CoaXPress CXP-12到CoaXPress-over-Fiber转换器

使用CoaXPress-over-Fiber轻松延长电缆

可将CXP-12相机连接到Coaxlink QSFP+采集卡

相机侧有四路CoaXPress CXP-12连接

采集卡侧有一个符合40 Gbps光学模块要求的QSFP+端口

相机带宽5,000 MB/s

PoCXP相机电源

比较购买地点

Coaxlink CXP-12 to QSFP+ Converter

© EURESYS S.A. - Subject to change without notice


8/15/2024 Datasheet Coaxlink CXP-12 to QSFP+ Converter 四路CoaXPress CXP-12到CoaXPress-over-Fiber转换器使用CoaXPress-over-Fiber轻松延长电缆可将CXP-12相机连接到Coaxlink QSFP+采集卡相机侧有四路CoaXPress CXP-12连接采集卡侧有一个符合40 Gbps光学模块要求的QSFP+端口相机带宽5,000 MB/s PoCXP相机电源 Main benefits Other benefits 规格 Mechanical Form factor Stand-alone device Cooling method Air cooling, fan-cooled heatsink Housing Aluminum housing Mounting Desktop Connectors 'COAXPRESS A B C D (INPUT)' on front panel: 4 x Micro-BNC 75 Ohms coaxial receptacles CoaXPress Host Interface 'QSFP+ (OUTPUT)' on rear panel: Enhanced Quad Small Form-factor Pluggable port CoaXPress-over-Fiber Device Interface 'POWER' on rear panel: 2-pin 5.08mm pitch terminal socket 24 V DC power input LED indicators 'A', 'B', 'C', 'D' on front panel: Bi-color red/green LEDs CoaXPress Host connector indicator 'A', 'B', 'C', 'D' on rear panel: Bi-color red/green LEDs CoaXPress-over-Fiber Device connector indicator 'STATUS' on rear panel: Bi-color red/green LED FPGA status indicator 'POWER' on rear panel: Bi-color red/green LED Board status indicator Dimensions L x W x H: 208 mm x 113 mm x 56.5 mm [8.2 in x 4.45 in x 2.22 in] Weight Net weight: 776 g [27.4 oz] Gross weight: 930 g [32.8 oz] Camera / video inputs Camera interface standard CoaXPress Interface standard(s) CoaXPress 1.0, 1.1, 1.1.1, 2.0, 2.1, CoaXPress-over-Fiber Bridge Protocol 1.1 Maximum link speed CXP-12 Maximum link width 4 connections Camera powering PoCXP Connectors Four micro-BNC 75 Ohms (also known as HD-BNC™) CXP-12 Status LEDs One CoaXPress Host connection status LED per connection Number of cameras Area-scan cameras: One 1- or 2- or 4-connection camera Four 1-connection cameras (Contact us) Line-scan cameras: One 1- or 2- or 4-connection camera Maximum number of cameras 4 Line-scan cameras supported Yes Maximum aggregated camera data transfer rate 50 Gbps (5,000 MB/s) Supported CXP down-connection speeds 1.25 Gbps (CXP-1), 2.5 Gbps (CXP-2), 3.125 Gbps (CXP-3), 5 Gbps (CXP-5), 6.25 Gbps (CXP-6), 10.0 Gbps (CXP-10), and 12.5 Gbps (CXP-12) Supported CXP up-connection speeds Low-speed 20.83... Mbps (CXP-1 to CXP-6) Low-speed 41.66... Mbps (CXP-10, CXP-12) Number of CXP data streams (per camera) 1 data stream per camera Maximum CXP stream packet size 16,384 bytes PoCXP (Power over CoaXPress) PoCXP Safe Power: PoCXP Device detection and automatic power-on Overload and short-circuit protections The +24V power source (POWER) must be able to deliver the power required by the converter and camera(s) Frame grabber / video outputs Interface standard CoaXPress-over-Fiber Interface standard(s) CXP-over-Fiber Bridge Protocol 1.1 Maximum link speed CoF-10 Maximum link width 4 connections Maximum data rate 50 Gbps (5,000 MB/s) Connectors One Enhanced Quad Small Form-factor Pluggable port (QSFP+) Status LEDs One CoaXPress-over-Fiber Device status LED per connection Electrical Supply voltage 24 V DC +/- 3% (23.25 V - 24.25 V), via external power supply (not included) Power connector 'POWER' connector on rear side: 2-pin 5.08 mm pluggable terminal block socket Power consumption 19.5 W for internal use 4 x 17 W for PoCXP Software Driver name eGrabber First release eGrabber 24.10 Current release eGrabber 26.02 Environmental conditions Operating ambient air temperature 0°C to +50°C / +32°F to +122°F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20°C to +70°C/ -4°F to +158°F Storage ambient air humidity 10% to 90% RH non-condensing Certifications EMC standards European Council EMC Directive 2014/30/EU United States FCC CFR Title 47 Part 15B EMC - Emission CISPR 32:2015 + A1:2019 Class A EN 55032:2015 + A11:2020 Class A EMC - Immunity CISPR 35:2016 EN 55035:2017 + A11:2020 IEC 61000-6-2:2016 / EN 61000-6-2:2019 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-6 KC Certification Korean Radio Waves Act, Article 58-2, Clause 3 Flammability PCB compliant with UL 94 V-0 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Ordering Information Product status Released Product code - Description PC3629 Coaxlink CXP-12 to QSFP+ Converter Related products PC1676 AC-DC Power Adapter, 24V, 160W Offices 欧洲、中东和非洲 Euresys SA Contact support : [email protected] Allied Vision Schongau Contact support : [email protected] 中国 Euresys 上海联络处 Contact support : [email protected] Euresys 深圳联络处 Contact support : [email protected] 日本 Euresys日本K.K. Contact support : Support [email protected] 韩国 Euresys 韩国联络处 Contact support : [email protected] 亚洲（其他国家/地区） Euresys Pte. Ltd. Contact support : [email protected] 北美、中美和南美 Euresys Inc. Contact support : [email protected]
