Coaxlink Octo CXP-12 - Euresys

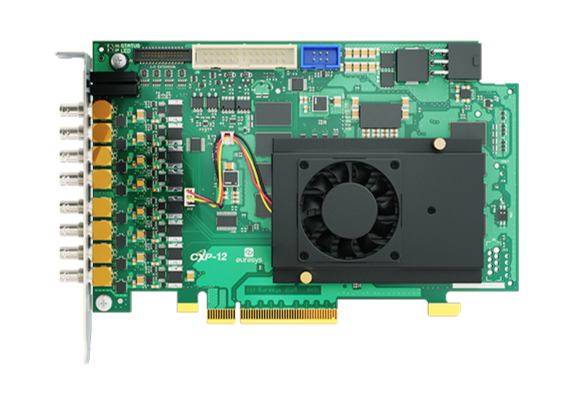

8-연결 CoaXPress CXP-12 프레임 그래버

8개의 CoaXPress CXP-12 연결: 초당 10,000MB 카메라 대역폭

8GB 온보드 메모리

PCIe 4.0(Gen 4) x8 버스: 초당 13,500MB 버스 대역폭

다기능 디지털 I/O 라인 10개

PC3304 HD26F I/O 어댑터 케이블과 함께 제공

광범위한 카메라 제어 기능

Memento 이벤트 로깅 도구

데이터시트

비교 구매처 안내

Coaxlink Octo CXP-12

© EURESYS S.A. - Subject to change without notice


7/19/2025 Datasheet Coaxlink Octo CXP-12 8-연결 CoaXPress CXP-12 프레임 그래버 8개의 CoaXPress CXP-12 연결: 초당 10,000MB 카메라 대역폭 8GB 온보드 메모리 PCIe 4.0(Gen 4) x8 버스: 초당 13,500MB 버스 대역폭 다기능 디지털 I/O 라인 10개 PC3304 HD26F I/O 어댑터 케이블과 함께 제공 광범위한 카메라 제어 기능 Memento 이벤트 로깅 도구 Main benefits Other benefits 사양 Mechanical Form factor PCI Express card Format Standard profile, half length, 8-lane PCI Express card Cooling method Air cooling, fan-cooled heatsink Mounting For insertion in a standard height, 8-lane or higher, PCI Express card slot Connectors 'A B C D E F G H' on card bracket: 8 x Micro-BNC 75 Ohms coaxial receptacles CoaXPress Host Interface 'INTERNAL I/O 1' on printed circuit board: 26-pin 2-row 0.1" pitch pin header with shrouding I/O lines and I/O power output 'I/O EXTENSION' on printed circuit board: 26-pin 2-row 0.05" pitch pin header with shrouding I/O extension cable socket 'C2C-LINK' on printed circuit board: 6-pin 2-row 0.1" pitch pin header with shrouding Card-to-card link 'AUXILIARY POWER INPUT' on printed circuit board: 6-pin PEG power socket 12 V DC power input for PoCXP and I/O power output LED indicators 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H' on bracket: Bi-color red/green LEDs CoaXPress Host connector indicator 'FPGA STATUS LAMP' on PCB: Bi-color red/green LED FPGA status indicator 'BOARD STATUS LAMP' on PCB: Bi-color red/green LED Board status indicator Switches 'RECOVERY' on PCB: 2-way DIP switch Firmware emergency recovery Dimensions PCB L x H: 167.65 mm x 111.15 mm [6.6 in x 4.38 in] Host bus Standard PCI Express 4.0 Link width 8 lanes 1 lane, 2 lanes or 4 lanes with reduced performance Link speed 16.0 GT/s (PCIe 4.0) 8.0 GT/s (PCIe 3.0) with reduced performance 5.0 GT/s (PCIe 2.0) with reduced performance Maximum payload size 512 bytes DMA 32- and 64-bit Peak delivery bandwidth 15,700 MB/s Effective (sustained) delivery bandwidth 13,500 MB/s (Host PC motherboard dependent) Power consumption Typ. TBD W (TBD W @ +3.3V, TBD W @ +12V), excluding camera and I/O power output Camera / video inputs Camera interface standard CoaXPress Interface standard(s) CoaXPress 1.0, 1.1, 1.1.1, 2.0 and 2.1 Maximum link speed CXP-12 Maximum link width 8 connections Camera powering PoCXP Connectors Eight micro-BNC 75 Ohms (also known as HD-BNC™) CXP-12 Status LEDs One CoaXPress Host connection status LED per connection Number of cameras Area-scan cameras: One 1- or 2- or 4- or 8-connection camera One or two 1- or 2- or 4-connection cameras Up to four 1- or 2-connection cameras One 1- or 2- or 4-connection camera and up to four 1-connection cameras Up to eight 1-connection cameras Line-scan cameras: One 1- or 2- or 4- or 8-connection camera One or two 1- or 2- or 4-connection cameras Up to four 1- or 2-connection cameras Maximum number of cameras 8 Line-scan cameras supported Yes Maximum aggregated camera data transfer rate 100 Gbps (10,000 MB/s) Supported CXP down-connection speeds 1.25 Gbps (CXP-1), 2.5 Gbps (CXP-2), 3.125 Gbps (CXP-3), 5 Gbps (CXP-5), 6.25 Gbps (CXP-6), 10.0 Gbps (CXP-10), and 12.5 Gbps (CXP-12) Supported CXP up-connection speeds Low-speed 20.83... Mbps (CXP-1 to CXP-6) Low-speed 41.66... Mbps (CXP-10, CXP-12) Number of CXP data streams (per camera) 1 data stream per camera Maximum CXP stream packet size 16,384 bytes PoCXP (Power over CoaXPress) PoCXP Safe Power: 17 W of 24V DC regulated power per CoaXPress connector PoCXP Device detection and automatic power-on Overload and short-circuit protections On-board 12V to 24V DC/DC converter A +12V power source must be connected to the AUXILIARY POWER INPUT connector using an 8-pin PEG cable (2x3 plug + 2x1 plug) NOTE: Only the 2x3 plug from the PEG cable must be connected to the AUXILIARY POWER INPUT connector. Camera types Area-scan cameras: Grayscale and color (YCbCr, YUV, RGB and Bayer CFA) Single-tap (1X-1Y) progressive-scan Line-scan cameras and contact imaging sensors: Grayscale and color RGB Camera pixel formats supported Mono8, Mono10, Mono12, Mono14, Mono16 BayerXX8, BayerXX10, BayerXX12, BayerXX14, BayerXX16 where XX = GR, RG, GB, or BG RGB8, RGB10, RGB12, RGB14, RGB16 RGBA8, RGBA10, RGBA12, RGBA14, RGBA16 YCbCr601_422_8, YCbCr601_422_10 YCbCr709_422_8, YCbCr709_422_10 YUV422_8, YUV422_10 Raw Area-scan camera control Trigger Precise control of asynchronous reset cameras, with exposure control. Support of camera exposure/readout overlap. Support of external hardware trigger, with optional delay and trigger decimation. Strobe Accurate control of the strobe position for strobed light sources. Support of early and late strobe pulses. Line-scan camera control Scan/page trigger Precise control of start-of-scan and end-of-scan triggers. Support of external hardware trigger, with optional delay. Support of infinite acquisition, without missing line, for web inspection applications. Line trigger Support for quadrature motion encoders, with programmable noise filters, selection of acquisition direction and backward motion compensation. Rate Converter tool for fine control of the pixel aspect ratio: Rate Conversion Ratio in the range 0.001 to 1000 with an accuracy better than 0.1%. Rate Divider tool Line strobe Accurate control of the strobe position for strobed light sources. On-board processing On-board memory 8 GB Image data stream processing Unpacking of 10-/12-/14-bit to 16-bit with selectable justification to LSb or MSb Optional swap of R and B components Little endian conversion Flat-field correction Only available with the '2-camera' firmware variant Input LUT (Lookup Table) Monochrome 8-bit to 8-bit transformation Monochrome 10-bit to 8-, 10- or 16-bit transformations Monochrome 12-bit to 8-, 12- or 16-bit transformations Geometrical operators TBD Bayer CFA to RGB decoder TBD Data stream statistics Measurement of: Frame rate (Area-scan only) Line rate Data rate Configurable averaging interval Event signaling and counting The application software can be notified of the occurrence of various events: Standard event: the EVENT_NEW_BUFFER event notifies the application of newly filled buffers A large set of custom events Custom events sources: I/O Toolbox events Camera and Illumination control events CoaXPress data stream events CoaXPress host interface events Each custom event is associated with a 32-bit counter that counts the number of occurrences The last three 32-bit context data words of the event context data can be configured with event-specific context data: Event-specific data State of all System I/O lines sampled at the event occurrence time Value of any event counter General Purpose Inputs and Outputs Number of lines 10 I/O lines on INTERNAL I/O connector: 2 differential inputs (DIN) 2 singled-ended TTL inputs/outputs (TTLIO) 4 isolated inputs (IIN) 2 isolated outputs (IOUT) NOTE: The number of I/O lines can be extended using I/O modules attached to the I/O EXTENSION connector. Usage Any I/O input lines can be used by any LIN tool of the I/O Toolbox Selected pairs of I/O input lines can be used by any QDC tool of the I/O toolbox to decode A/B signals of a motion encoder Electrical specifications DIN: High-speed differential inputs, up to 5 MHz, compatible with ANSI/EIA/TIA-422/485 differential line drivers and complementary TTL drivers TTLIO: High-speed 5V-compliant TTL inputs or LVTTL outputs, compatible with totem-pole LVTTL, TTL, 5V CMOS drivers or LVTTL, TTL, 3V CMOS receivers IIN: 200 kHz isolated current-sense input with wide voltage input range up to 30V, compatible with totem-pole (push-pull) HTL drivers, 5V TTL/RS-422 differential line drivers, 5V CMOS drivers, potential free contacts, solid-state relays and opto-couplers IOUT: Isolated contact outputs compatible with 30V / 100mA loads NOTE: IIN and IOUT lines provide a functional isolation grade for the circuit technical protection. It does not provide an isolation that can protect a human being from electrical shock! Filter control Glitch removal filter available on all System I/O input lines Configurable filter delay: Custom value Fixed values for DIN and TTLIO lines: 50 ns, 100 ns, 200 ns, 500 ns, 1 µs Fixed values for IIN lines: 500 ns, 1 µs, 2 µs, 5 µs, 10 µs Polarity control Yes I/O Toolbox tools The I/O Toolbox is a configurable interconnection of tools that generates events (usually triggers): Line Input tool (LIN): edge detector delivering events on rising or falling edges of any selected input line. Quadrature Decoder tool (QDC): a composite tool including: A quadrature edge detector delivering events on selected transitions of selected pairs of input lines. An optional backward motion compensator for clean line-scan image acquisition when the motion is unstable. A 32-bit up/down counter for delivering a position value. Device Link Trigger tool (DLT): delivers an event on reception of a valid high-speed CoaXPress 2.0 connection trigger packet message from the remote device. User Actions Scheduler tool (UAS): to delegate the execution of 'User Actions' at a scheduled time or encoder position. Possible user actions include setting low/high/toggle any bit of the User Output Register or generation of any User Events. Delay tool (DEL): to delay up to 16 events from one or two I/O toolbox event sources, by a programmable time or number of motion encoder ticks (any QDC events). Divider tool (DIV): to generate an event every nth input events from any I/O toolbox event source. Multiplier/divider tool (MDV): to generate m events every d input events from any I/O toolbox event source. The 'Input Tools' (LIN, QDC, DLT and UAS) can be further processed by the 'Event Tools' (DEL, DIV and MDV) to generate any of the following "trigger" events: The "cycle trigger" of the Camera and Illumination controller The "cycle sequence trigger" of the Camera and Illumination controller The "start-of-scan trigger" of the Acquisition Controller (line-scan only) The "end-of-scan trigger" of the Acquisition Controller (line-scan only) I/O Toolbox composition TBD C2C-Link Description Accurate synchronization of the trigger and the start-of-exposure of multiple grabber-controlled area-scan cameras. Accurate synchronization of the start-of-cycle, start-of-scan and end-of-scan of multiple grabber-controlled line-scan cameras. Specification C2C-Link synchronizes cameras connected to: the same card to different cards in the same PC (requires an accessory cable such as the "3303 C2C-Link Ribbon Cable" or a custom-made C2C-Link cable) to different cards in different PCs (requires one "1636 InterPC C2C-Link Adapter" for each PC and one RJ 45 CAT 5 STP straight LAN cable for each adapter but the last one) Maximum distance: 120 cm inside a PC 1200 m cumulated adapter to adapter cable length Maximum trigger rate: 2.5 MHz for configurations using a single PC, or up to 10 PCs and 100 m total C2C-Link cable length 200 kHz for configurations up to 32 PCs and 1200m total C2C-Link cable length Trigger propagation delay from master to slave devices: Less than 10 ns for cameras on the same card or on different cards in the same PC Less than 265 ns for cameras on different cards in different PCs (3 PCs and 40m total C2C-Link cable length) Software Driver name eGrabber First release eGrabber 25.xx Current release eGrabber 25.05 Host PC Operating System Microsoft Windows 11, 10 for x86-64 (64-bit) processor architecture Linux for x86-64 (64-bit) and AArch64 (64-bit) processor architectures macOS for x86-64 (64-bit) and AArch64 (64-bit) processor architectures APIs EGrabber class, with C++ and .NET APIs: .NET assembly designed to be used with development environments compatible with .NET frameworks version 4.6 or higher GenICam GenTL producer libraries compatible with C/C++ compilers: 'x86_64' dynamic library designed to be used with ISO-compliant C/C++ compilers for the development of x86-64 (64-bit) applications 'aarch64' dynamic library designed to be used with ISO-compliant C/C++ compilers for the development of AArch64 (64-bit) applications Memento supported Yes Environmental conditions Operating ambient air temperature 0°C to +55°C / +32°F to +131°F Operating ambient air humidity 10% to 90% RH non-condensing Storage ambient air temperature -20°C to +70°C/ -4°F to +158°F Storage ambient air humidity 10% to 90% RH non-condensing Certifications EMC standards European Council EMC Directive 2014/30/EU United States FCC rule 47 CFR 15 EMC - Emission EN 55032:2015 / CISPR 32:2012 Class TBD FCC 47 Part 15 Class TBD EMC - Immunity EN 55024:2010 / CISPR 24:2010 EN 55035:2017 / CISPR 35:2016 EN 61000-4-2:2009 EN 61000-4-3:2006 EN 61000-4-4:2004 EN 61000-4-6:2014 To be confirmed KC Certification Korean Radio Waves Act, Article 58-2, Clause 3 Flammability PCB compliant with UL 94 V-0 RoHS European Union Directive 2015/863 (ROHS3) REACH European Union Regulation 1907/2006 WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations Ordering Information Product status Preliminary Product code - Description PC3632 Coaxlink Octo CXP-12 Included accessories PC3304 HD26F I/O Adapter Cable Related products PC1625 DB25F I/O Adapter Cable PC1636 InterPC C2C-Link Adapter PC3303 C2C-Link Ribbon Cable PC3614 HD26F I/O Extension Module - Standard I/O Set PC3618 HD26F I/O Extension Module - Fast I/O Offices 유럽, 중동 및 아프리카 Euresys SA Contact support : [email protected] Sensor to Image GMBH Contact support : [email protected] 중국 Euresys Shanghai Liaison Office Contact support : [email protected] Euresys Shenzhen Liaison Office Contact support : [email protected] 일본 Euresys Japan K.K. Contact support : Support [email protected] 한국 Euresys 한국 연락사무소 Contact support : [email protected] 아시아(기타 국가) Euresys Pte. Ltd. Contact support : [email protected] 북, 중남미 Euresys Inc. Contact support : [email protected]
