Internal USB Interface
Good for industrial and embedded systems, provide a secure and robust storage for the Open eVision licenses.
The Neo USB Header is compatible with USB 2.0 headers.
Preliminary

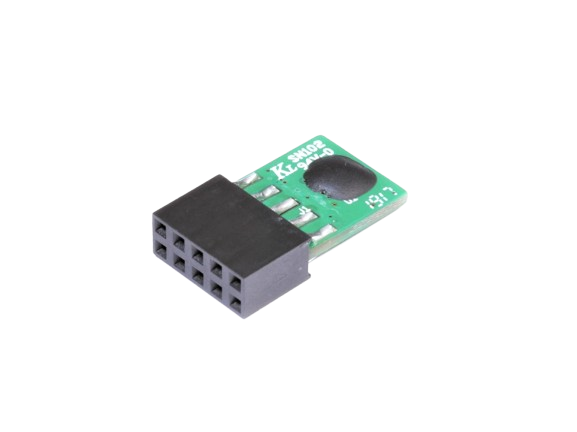

Neo USB Header (empty)
USB-port empty dongle for storing Euresys licenses
Supported on Windows and Linux, including embedded platforms
Long term supply
Best license container for all future Open eVision features
Form factor of an internal USB interface with a standard 2x5 receptacle (2.54 mm pitch)
Modern Neo License Manager application (cross platform, GUI and command line versions)
Main Benefits
Neo License Manager
The Neo License Manager is a user-friendly application for managing Open eVision licenses. It is available for Windows and Linux. With the Neo License Manager, the user can activate a license (on a dongle or on a software container, using an online or an offline process), start an emergency license, or generate activation reports. The interface is available in various languages (English, Korean, Japanese, Chinese). A command line version allows to manage the licenses without interacting with a graphical user interface.
Specifications
Mechanical
- Dimensions
L x W x H: 21.7 mm x 5 mm x 12.7 mm [0.85 in x 0.20 in x 0.50 in]
- Weight
Net weight: 2 g [0.1 oz]
Gross weight: 17 g [0.6 oz]
Certifications
- EMC standards
Europe: compliant according to EC Directives 2004/108/EC
US : FCC Part 15, Subpart B, File 09047-AU01+E01
Japan : VCCI 2003-04
South Korea : KCC 7UNR-XW14-FCI1-AWGX, XWK-1001-02-xxx (A)
- RoHS
Compliant with 2011/65/EC
- WEEE
Compliant with 2002/96/EC
Reliability
- MTBF
Above 3 Million hours
Ordering Information
- Product status
Preliminary
- Product code - Description
PC6516 Neo USB Header (empty)
