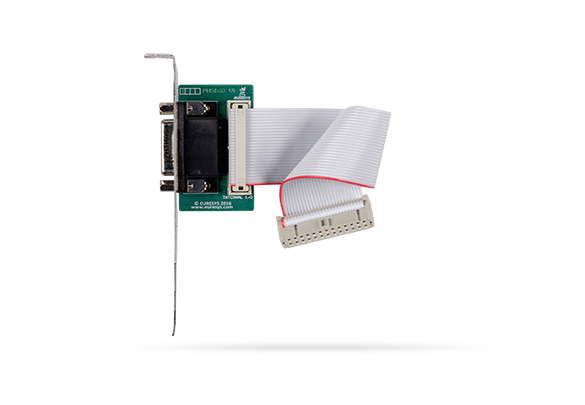

HD26F I/O 适配器电缆
带 PC 支架的 I/O 电缆
将额外的 I/O 线扩展到独立 PC 支架上的连接器
兼容 Coaxlink Quad G3、Coaxlink Quad G3 DF、Coaxlink Quad 3D-LLE、Coaxlink Octo、Coaxlink Quad CXP-12、Coaxlink Quad CXP-12 JPEG 和 Coaxlink QSFP+
/--/uploads/2024/07/3304_HD26FIOAdapterCable_1.png)
规格
Mechanical
- Connectors
'EXTERNAL I/O' on card bracket:
26-pin 3-row high-density D-Sub female socket with UNC4-40 jack socket screws
I/O lines and I/O power output
- Dimensions
PCB: 30 mm x 55 mm, 1.2 in x 2.2 in
Cable lenght: 200 mm, 7.9 in
- Weight
Net weight: 55 g [1.9 oz]
Gross weight: 143 g [5 oz]
Software
- First release
MultiCam 6.18
Certifications
- Flammability
PCB compliant with UL 94 V-0
- RoHS
European Union Directive 2015/863 (ROHS3)
- REACH
European Union Regulation 1907/2006
- WEEE
Must be disposed of separately from normal household waste and must be recycled according to local regulations
Ordering Information
- Product status
Released
- Product code - Description
PC3304 HD26F I/O Adapter Cable
